£122.21 incl. VATLindy 43275 interface hub USB 3.2 Gen 2 (3.1 Gen 2) Type-A 10000 Mbit/s Black
£176.22 incl. VAT
10 in stock
Free delivery by Wednesday 30 September
MPN: 43275
4002888432757

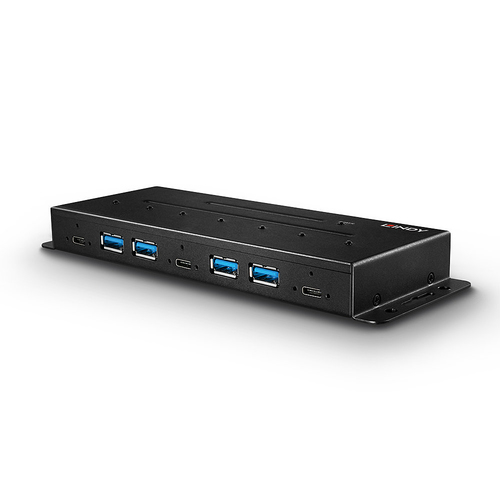

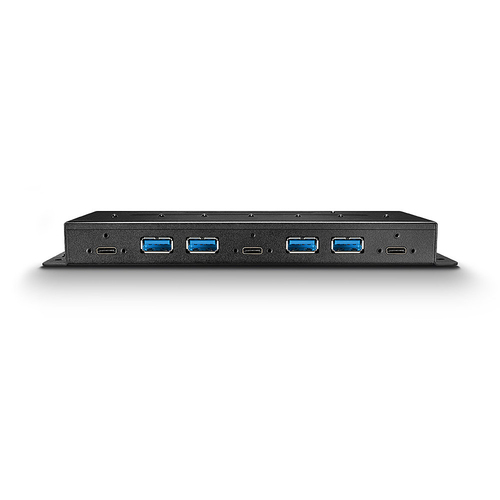

The Lindy 7 Port USB 3.2 Gen 2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.

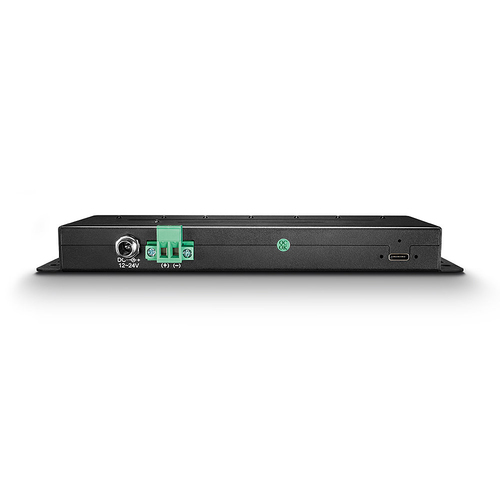

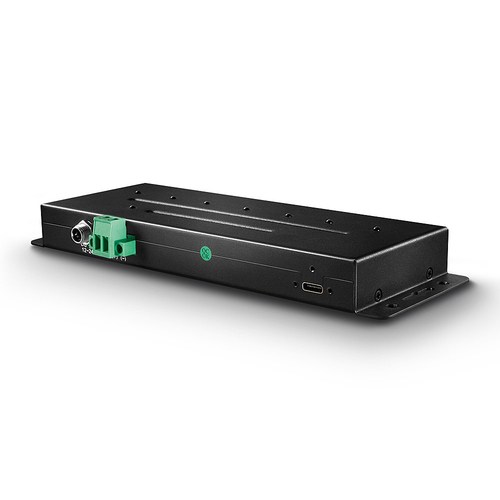

Each port features individual short circuit protection – and all 7 USB ports support the Battery Charging specification 1.2 with a total charging power of 40 Watts for all 7 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
The Lindy 7 Port USB 3.2 Gen 2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.
| Ports & interfaces | Value |
|---|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| Ports quantity | 7 |
| DC-in jack | ✓ | Features | Value |
| Data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Housing material | Metal |
| Certification | CE, FCC, RoHS, REACH, California Proposition 65 | Power | Value |
| Input voltage | 16 V |
| Input current | 3 A |
| Weight & dimensions | Value |
|---|---|
| Width | 184.5 mm |
| Depth | 64.3 mm |
| Height | 20 mm |
| Weight | 700 g | Packaging data | Value |
| Quantity per pack | 1 pc(s) |
| Package width | 260 mm |
| Package depth | 180 mm |
| Package height | 70 mm |
| Package type | Carton | Operational conditions | Value |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
