Essential Info:
8-PORT (4X POE +) GBE SWITCH
StarTech.com IES51000 network switch Gigabit Ethernet (10/100/1000) Black
£180.50 incl. VAT
StarTech.com IESC1G50UP network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
£224.15 incl. VAT£260.44 incl. VAT
4 in stock
0065030871112

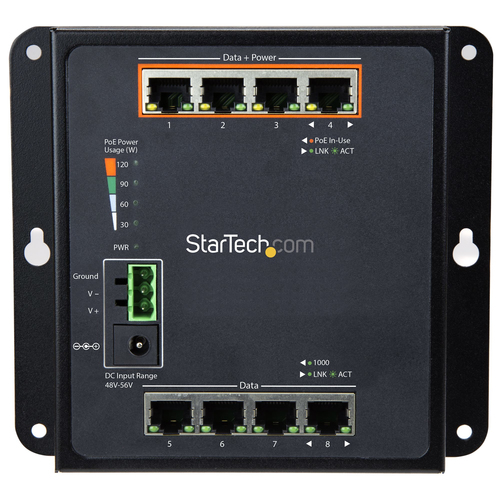

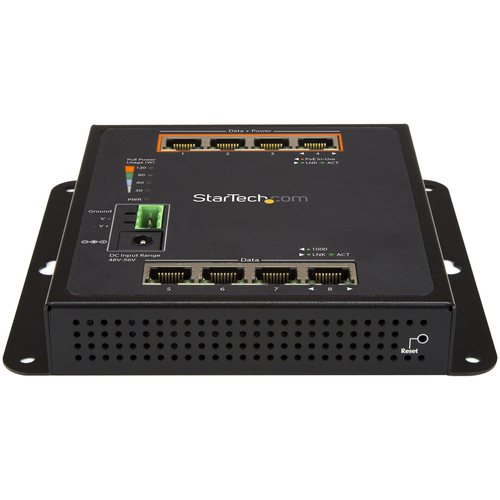

8-PORT (4X POE +) GBE SWITCH
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 | Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack | Network |
| Networking standards | IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z |
| 10G support | |
| Full duplex | ✓ |
| Flow control support | ✓ |
| Link aggregation | ✓ |
| Auto MDI/MDI-X | ✓ |
| Spanning tree protocol | ✓ |
| Virtual LAN features | Tagged VLAN | Data transmission |
| Store-and-forward | ✓ |
| Jumbo frames support | ✓ |
| Jumbo frames | 9000 | Security |
| Access Control List (ACL) | ✓ | Design |
| Rack mounting | |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity, Link, Power |
| International Protection (IP) code | IP30 |
| Wall mountable | ✓ |
| Certification | CE, FCC, RoHS | Performance |
| Buffer size | 512 KB |
| Maximum data transfer rate | 2000 Mbit/s |
| Mean time between failures (MTBF) | 100000 h |
| Power | |
|---|---|
| Input current | 1 A |
| Input voltage | 12 - 48 V |
| Power plug type | Type M | Power over Ethernet (PoE) |
| Power over Ethernet (PoE) | ✓ |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W | Operational conditions |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 5 - 95% | Weight & dimensions |
| Width | 148 mm |
| Depth | 134 mm |
| Height | 25 mm |
| Weight | 650 g | Packaging data |
| Quick start guide | ✓ |
| Terminal block included | ✓ |
| Package width | 173 mm |
| Package depth | 30 mm |
| Package height | 92 mm |
| Package weight | 930 g | Logistics data |
| Master (outer) case width | 335 mm |
| Master (outer) case length | 363 mm |
| Master (outer) case height | 475 mm |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 10 pc(s) | Other features |
| Terminal block port | ✓ |
