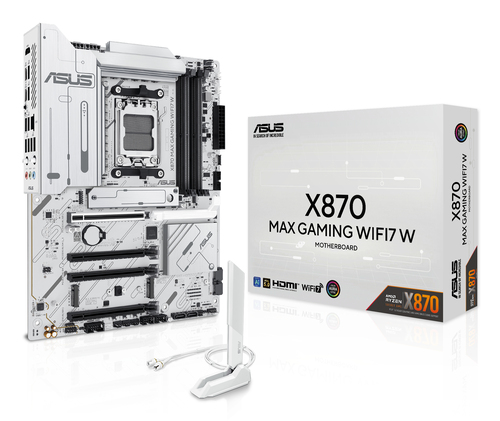

ASUS X870 MAX GAMING WIFI7 W AMD X870 Socket AM5 ATX
£238.37 incl. VAT
ASUS TUF GAMING B850M-PLUS WIFI7 W AMD B850 Socket AM5 micro ATX

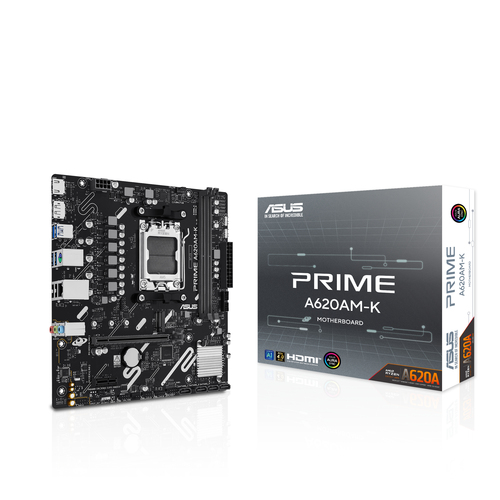

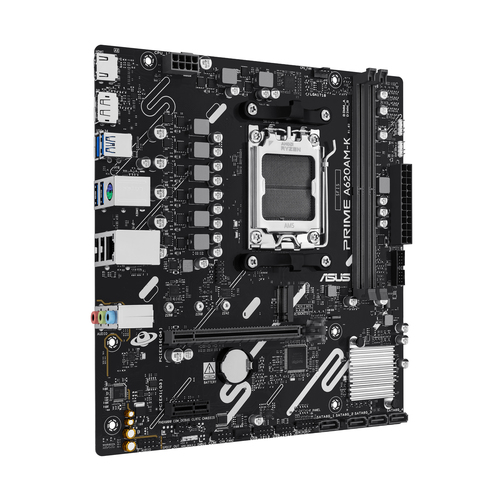

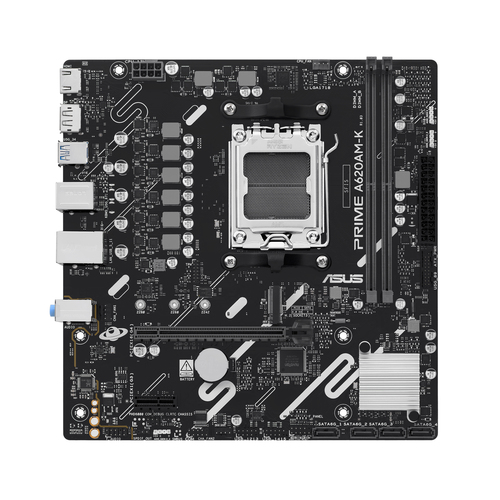

£193.01 incl. VATASUS PRIME A620AM-K AMD A620A Socket AM5 micro ATX
£78.18 incl. VAT
10 in stock
Free delivery by Tuesday 29 September
MPN: 90MB1GX0-M0EAY0
4711636227988
A620AM-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME A620AM-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Performance
Digital Power Design
PRIME A620AM-K features 6+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
A620AM-K
| Processor | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 | Memory | Value |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Unbuffered memory | ✓ | Storage controllers | Value |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| RAID support | ✓ |
| RAID levels | 0, 1, 5, 10 | Graphics | Value |
| Parallel processing technology support | Not supported | Internal I/O | Value |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | ✓ |
| Front panel audio connector | ✓ |
| Front panel connector | ✓ |
| ATX Power connector (24-pin) | ✓ |
| CPU fan connector | ✓ |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| TPM connector | ✓ |
| 12V power connector | ✓ |
| RGB LED pin header | ✓ |
| Number of RGB LED pin headers | 3 |

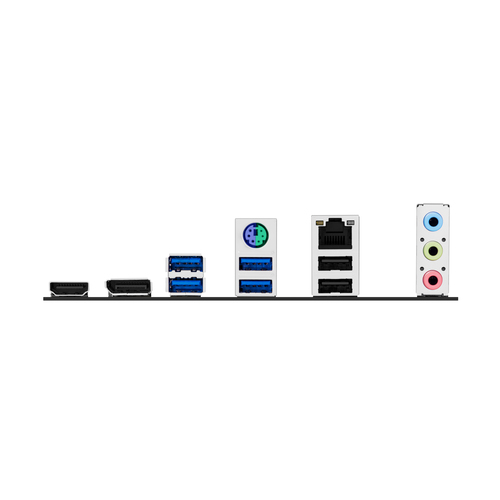

| Rear panel I/O ports | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 | Network | Value |
| Ethernet LAN | ✓ |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Features | Value |
| Motherboard chipset | AMD A620A |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64, Windows 11 | Expansion slots | Value |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 | BIOS | Value |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit | Packaging data | Value |
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 900 g | Weight & dimensions | Value |
| Width | 226 mm |
| Depth | 221 mm | Packaging content | Value |
| Cables included | SATA |
| Screws included | ✓ |
