ASUS PRIME B760M-K D4 – Motherboard – micro ATX – LGA1700 Socket – B760 Chipset – USB 3.2 Gen 1 – 2.5 Gigabit LAN – onboard graphics (CPU required) – HD Audio (8-channel)

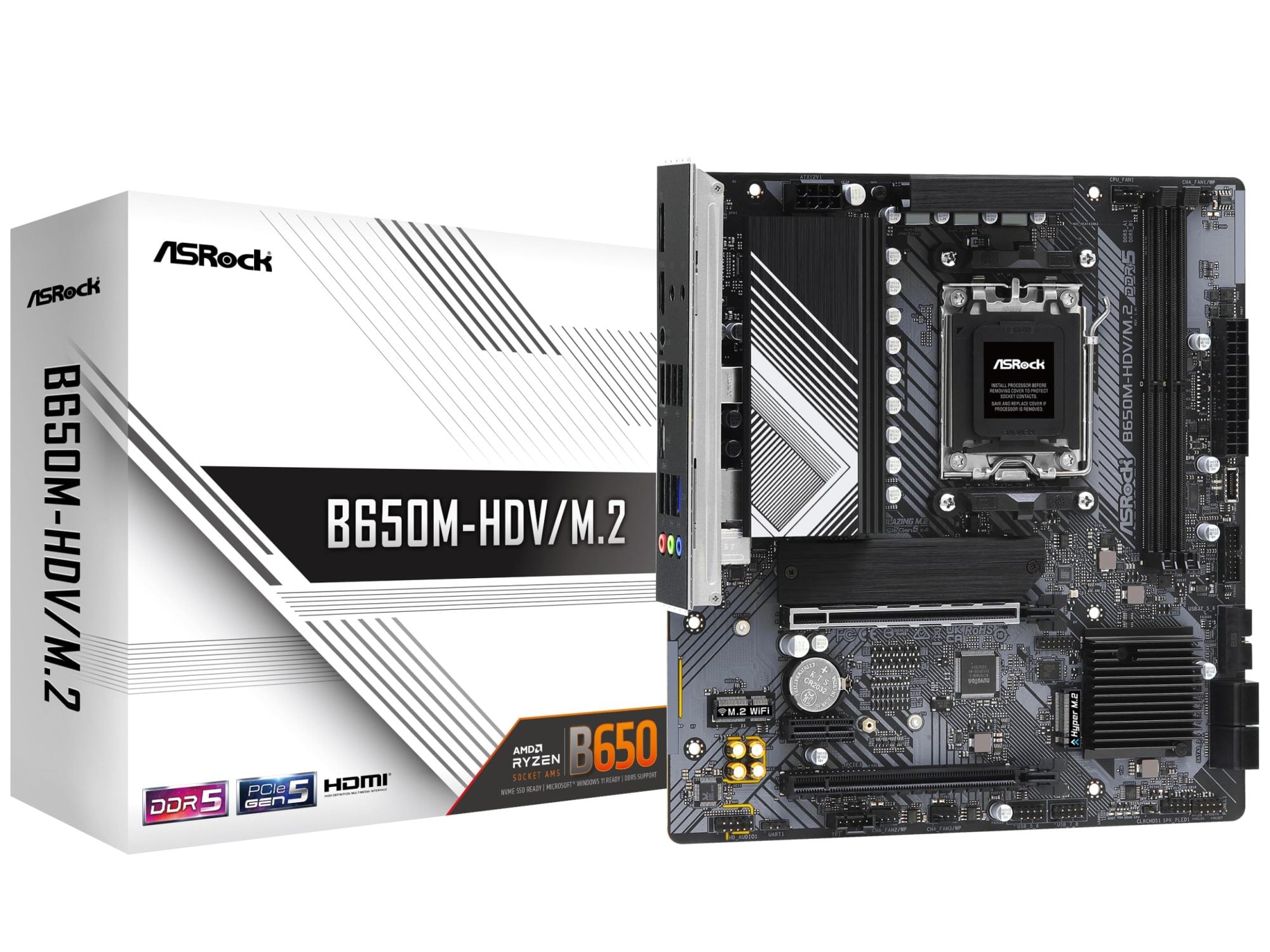

ASRock B650M-HDV/M.2 AMD AM5 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 3x M.2 Sockets, 2x USB-C Port, Fitted I/O Shield, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port
£99.46 incl. VAT
Compulocks PK01 tablet security enclosure

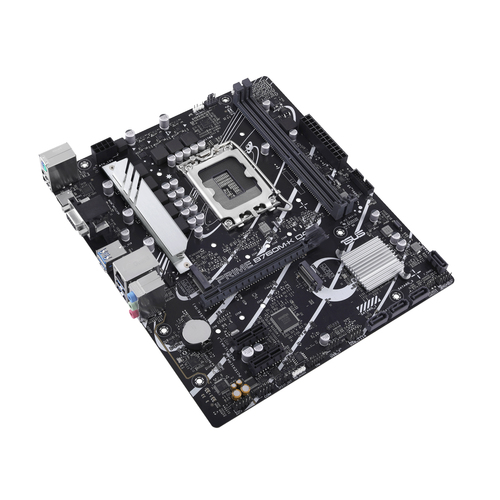

£234.50 incl. VATASUS PRIME B760M-K D4 Intel B760 LGA 1700 micro ATX
£111.06 incl. VAT
7 in stock
Free delivery by Tuesday 29 September
MPN: 90MB1DS0-M1EAY0
4711387006917
| Processor | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 | Memory | Value |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
| Supported memory clock speed (max) | 5333 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | ✓ | Storage controllers | Value |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | ✓ |
| RAID levels | 0, 1, 5, 10 | Graphics | Value |
| Parallel processing technology support | Not supported | Internal I/O | Value |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | ✓ |
| Front panel audio connector | ✓ |
| ATX Power connector (24-pin) | ✓ |
| CPU fan connector | ✓ |
| Number of chassis fan connectors | 1 |
| EPS power connector (8-pin) | ✓ |
| Number of COM connectors | 1 |
| TPM connector | ✓ |
| 12V power connector | ✓ |
| RGB LED pin header | ✓ |

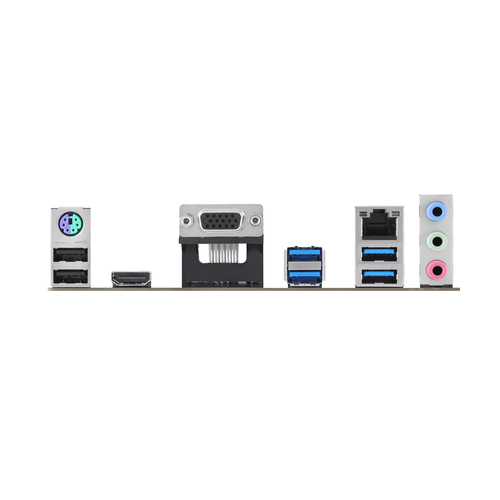

| Rear panel I/O ports | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Microphone in | ✓ |
| USB connector type | USB Type-A | Network | Value |
| Ethernet LAN | ✓ |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wake-on-LAN ready | ✓ |
| Wi-Fi | Features | Value |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 | Expansion slots | Value |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 | BIOS | Value |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit | Packaging data | Value |
| Package width | 270 mm |
| Package depth | 51.5 mm |
| Package height | 263 mm |
| Package weight | 926.3 g | Weight & dimensions | Value |
| Width | 244 mm |
| Depth | 211 mm |
| Height | 36 mm | Packaging content | Value |
| Cables included | SATA | Other features | Value |
| Weight | 528 g |
Reviews
There are no reviews yet.
