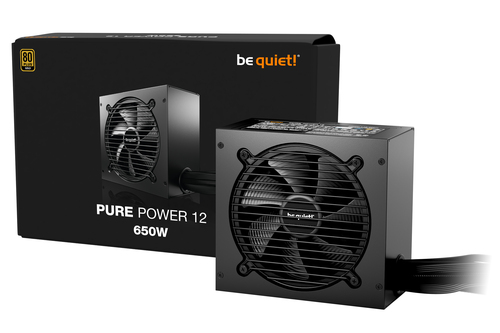

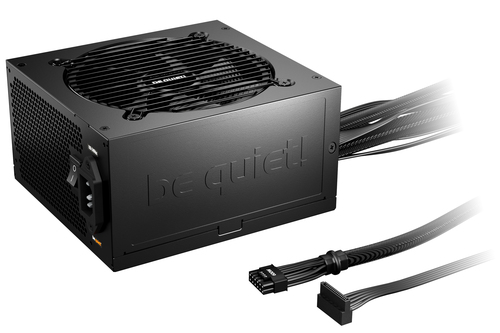

£110.23 incl. VATbe quiet! PURE POWER 12 650W power supply unit 20+4 pin ATX ATX Black
£78.30 incl. VAT
81 in stock
Free delivery by Tuesday 29 September
MPN: BP002EU
4260052191170
Exceptional quiet, superior features
Pure Power 12 650W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
Exceptional quiet, superior features
| Power | Value |
|---|---|
| Total power | 650 W |
| Peak power | 720 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 54.1 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16.86 ms |
| Efficiency | 91% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage | Ports & interfaces | Value |

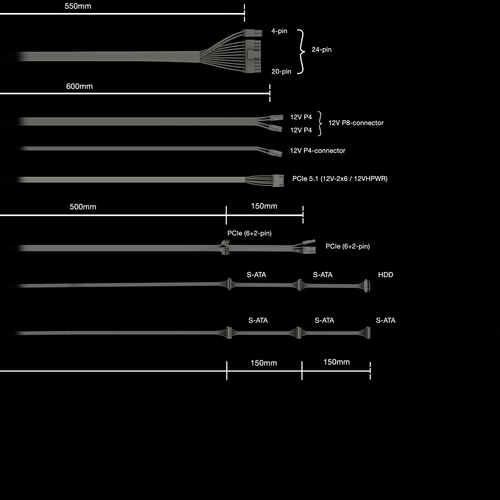

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 500,650,800 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 800 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power cable length | 60 cm |
| CPU P4 connector (4-pin) | 1 |
| CPU power connector (4+4 pin) | ✓ |
| CPU power cable length | 60 cm |
| Cabling type | Non-Modular | Performance | Value |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |

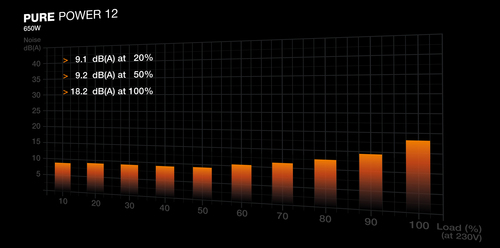

| Noise level | 18.2 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Design | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | ✓ | Operational conditions | Value |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% | Packaging content | Value |

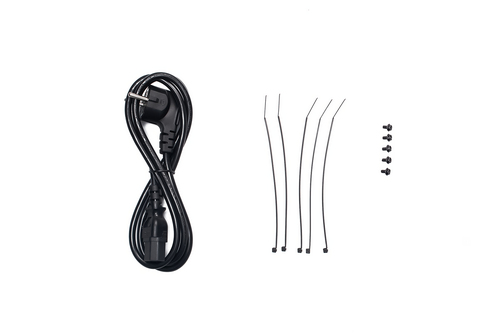

| Cables included | AC |
| Cable tie(s) included | ✓ | Certificates | Value |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus | Weight & dimensions | Value |
| Width | 86 mm |
| Depth | 160 mm |
| Height | 150 mm |
| Weight | 2.4 kg | Packaging data | Value |
| Package width | 133 mm |
| Package depth | 320 mm |
| Package height | 210 mm |
| Package weight | 2.8 kg | Technical details | Value |
| Sustainability certificates | ENERGY STAR, ErP, Triman | Logistics data | Value |
| Shipping (inner) case length | 42 cm |
| Shipping (inner) case width | 34.5 cm |
| Shipping (inner) case height | 41.3 cm |
| Shipping (inner) case net weight | 18.1 kg |
| Products per shipping (inner) case | 6 pc(s) |
| Warranty period | 10 year(s) | Other features | Value |
| Screws included | ✓ |
