MSI Cubi NUC AI 1UMG i5 125H BB Cube Black BGA 2049 1.2 GHz
£99,999.99 incl. VAT
Out of Stock
MPN: Cubi NUC AI 1UMG i5 125H BB
4711377357975
The Cubi NUC AI 1UM is a mini pc equipped with Intel® AI Boost NPU and Intel® CoreTM Ultra processor, and it won the Red Dot Design Award in 2024. With quadruple monitor support, dual 2.5G LAN network capabilities, sustainable material and packing design, the Cubi NUC AI is compact, versatile, yet capable mini desktop PC for home or the office with AI features.
Up to Intel® CoreTM Ultra 5 processor 125H with Intel® AI Boost NPU -Equipped with a built-in Intel® AI Boost NPU, the Cubi NUC AI Series provides users with an AI-ready PC experience

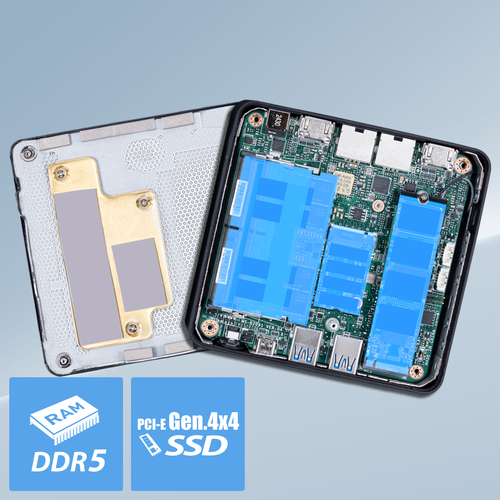

RAM capacity: The Cubi NUC AI Series can support DDR5 5200MHz memory (2 x SO-DIMM, up to 64GB).

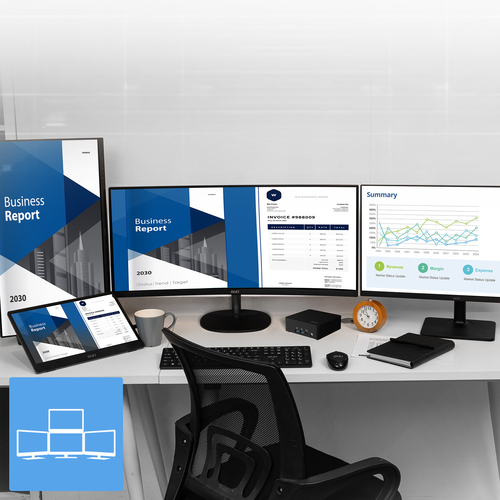

The rear I/O panels include two Thunderbolt 4, two HDMI 2.1 outputs, which support quadruple monitor setups for improved workflow efficiency or previewing e-commerce content
Network connectivity includes Intel wireless, Bluetooth, and dual 2.5G ethernet LAN
dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Kensington Lock slot included

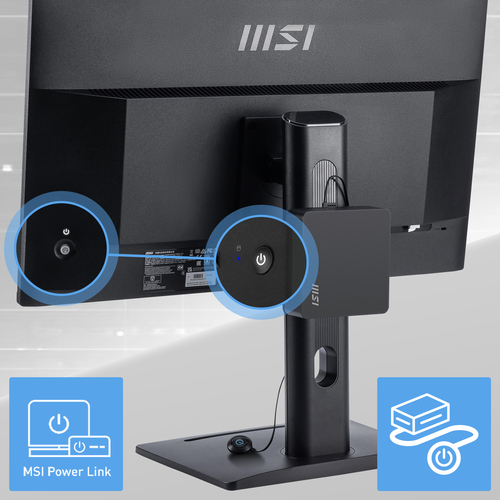

The MSI Power Link allows the power button of MSI-selected monitors to turn on the Cubi NUC AI Series

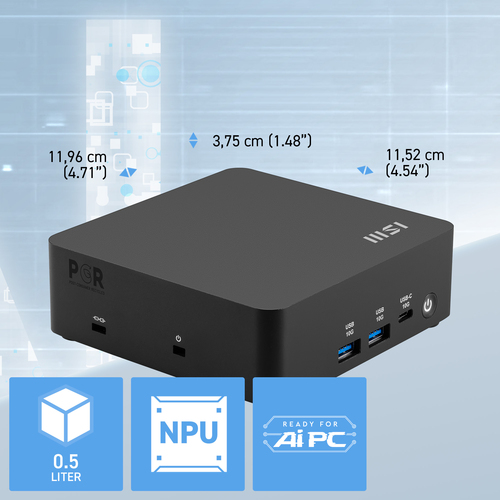

The chassis is VESA-mountable (standard 100×100 & 75×75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment

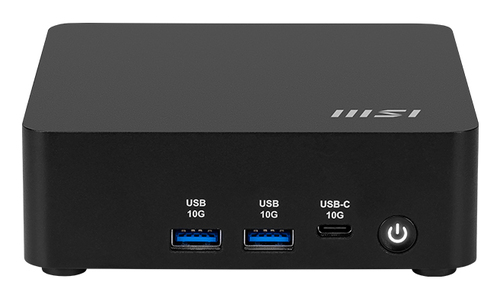

The front 1 x USB 10Gbps Type C and 2 x Type A ensure that plugging in and transferring data between devices is quick and hassle-free
The two rear Thunderbolt 4 ports support the display and power delivery output of 15W
Made with PCR (Post-consumer Recycled) plastic materials
Reduce waste by using a recycled molded pulp tray packing design
Manufatured with 99% of renewable energy in factory
MSI AI Engine offers multiple optimizations that can help lighten the workload
Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation
The Cubi NUC AI 1UM is a mini pc equipped with Intel® AI Boost NPU and Intel® CoreTM Ultra processor, and it won the Red Dot Design Award in 2024. With quadruple monitor support, dual 2.5G LAN network capabilities, sustainable material and packing design, the Cubi NUC AI is compact, versatile, yet capable mini desktop PC for home or the office with AI features.
| Processor | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor model | 125H |
| Processor cores | 14 |
| Processor threads | 18 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 1.2 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 1.2 GHz |
| Low Power Efficient-core Base Frequency | 800 MHz |
| Built-in processor | ✓ |
| Processor lithography | 7 nm |
| Processor cache | 18 MB |
| L2 cache | 10 MB |
| L3 cache | 8 MB |
| Thermal Design Power (TDP) | 28 W |
| ECC supported by processor | Memory | Value |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5200 MHz |
| Supported memory types | GDDR5 |
| Memory channels | Dual-channel |
| ECC | |
| Non-ECC | ✓ | Storage | Value |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Storage drive interface | PCI Express |
| NVMe | ✓ |
| Number of storage drives supported | 2 |
| Card reader integrated | Audio | Value |
| Built-in speaker(s) | Network | Value |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | ✓ |
| Wi-Fi | ✓ |
| LAN controller | Intel I226-V |
| Bluetooth | ✓ |
| Bluetooth version | 5.2 |
| Near Field Communication (NFC) | |
| Bluetooth Low Energy (BLE) | ✓ | Ports & interfaces | Value |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt ports quantity | 2 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Expansion slots | Value |
| Number of M.2 (M) slots | 2 | Design | Value |
| Chassis type | Cube |
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | ✓ |
| VESA mounting | ✓ |
| Panel mounting interface | 100 x 100 mm |
| Product type | Mini PC barebone | Performance | Value |
| Motherboard form factor | NUC |
| Processor socket | BGA 2049 |
| Number of processors supported | 1 |
| Supported processor frequency (max) | 4.5 GHz |
| Trusted Platform Module (TPM) version | 2.0 |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Export Control Classification Number (ECCN) | 5A992.C | Processor special features | Value |
| Intel® vPro™ Platform Eligibility | |
| Intel On-Demand Power Redundancy Technology | |
| Intel® High Definition Audio (Intel® HD Audio) | ✓ |
| Embedded options available | |
| Intel Dual Display Capable Technology | ✓ |
| Intel® Virtualization Technology (Intel® VT) | ✓ |
| Intel Rapid Storage Technology | ✓ |
| Intel® Anti-Theft Technology (Intel® AT) | |
| Intel® AES New Instructions (Intel® AES-NI) | ✓ |
| Intel® Quick Sync Video Technology | ✓ |
| Intel® InTru™ 3D Technology | |
| Intel® Insider™ | |
| Intel® Wireless Display (Intel® WiDi) | |
| Intel FDI Technology | |
| Intel® Clear Video HD Technology (Intel® CVT HD) | ✓ |
| Intel® Turbo Boost Technology | ✓ |
| Intel® Hyper Threading Technology (Intel® HT Technology) | ✓ |
| Intel Virtualization Technology for Directed I/O (VT-d) | ✓ |
| Intel VT-x with Extended Page Tables (EPT) | ✓ |
| Intel 64 | ✓ |
| Intel® My WiFi Technology (Intel® MWT) | |
| Idle States | ✓ |
| Enhanced Intel SpeedStep Technology | ✓ |
| Intel Demand Based Switching | ✓ |
| Thermal Monitoring Technologies | ✓ |
| Intel Fast Memory Access | |
| Intel Flex Memory Access | ✓ |
| Intel® Identity Protection Technology (Intel® IPT) | ✓ |
| Intel Trusted Execution Technology | |
| Execute Disable Bit | ✓ |
| Intel® Smart Cache | ✓ |
| Intel Visual BIOS | |
| Intel Express BIOS update | |
| Intel TSX-NI | |
| Intel® Matrix Storage Technology (Intel® MST) | |
| Intel Smart Connect Technology | |
| Intel® Small Business Advantage (Intel® SBA) | |
| Intel® Secure Key | ✓ |
| Intel® Smart Response Technology | |
| Intel Stable Image Platform Program (SIPP) | |
| Intel® OS Guard | ✓ |
| Conflict-Free | ✓ |
| Intel® Rapid Start Technology | |
| Intel Advanced Management Technology | |
| Intel Clear Video Technology | ✓ |
| Intel® Unite™ | |
| Intel Unite installed | |
| Intel® Optane™ Memory Ready | |
| Intel® Platform Trust Technology (Intel® PTT) | ✓ |
| Intel Virtualization Technology (VT-x) | ✓ |
| Technical details | Value |
|---|---|
| PSTI certified | |
| Not classified as hazardous under GHS | Certificates | Value |
| Waste Electrical and Electronic Equipment (WEEE) compliance | ✓ | Software | Value |
| Windows operating systems supported | ✓ |
| Linux operating systems supported | ✓ |
| Operating system installed | Power | Value |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz | Operational conditions | Value |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% | Weight & dimensions | Value |
| Width | 119.6 mm |
| Depth | 115.2 mm |
| Height | 37.5 mm |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm | Packaging content | Value |
| Power cord included | ✓ |
| AC adapter included | |
| Quick start guide | |
| Drivers included | |
| Display included | |
| Mouse included | |
| Keyboard included | Other features | Value |
| Country of origin | China |
| Introduction month | June |
| Introduction year | 2025 |
| Warranty period | 3 year(s) |
