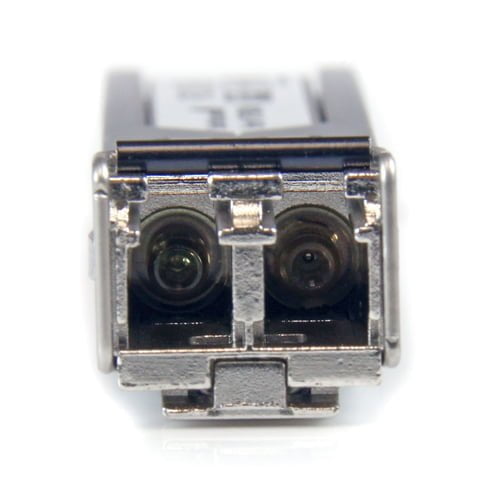

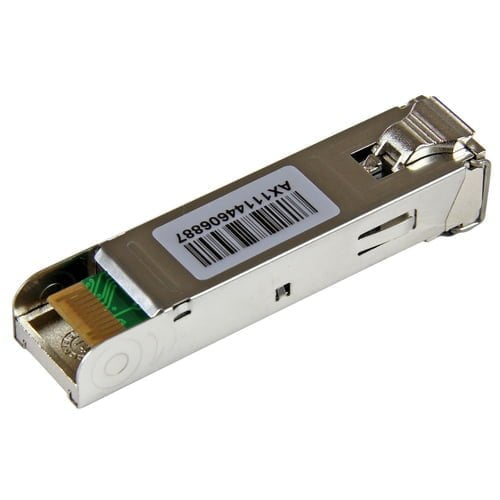

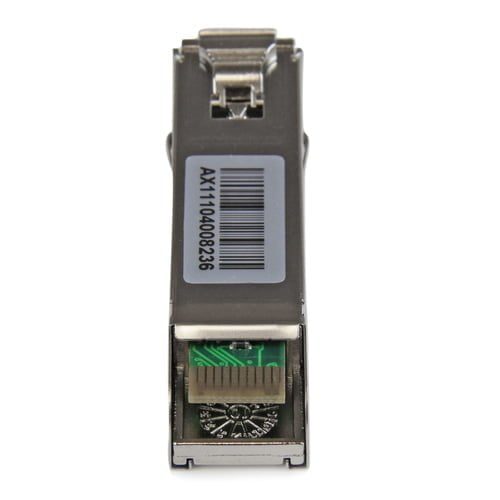

StarTech.com SFPSXMM network transceiver module Fiber optic 1250 Mbit/s

£52.42 incl. VAT

Out of Stock

MPN: SFPSXMM
Warranty: 2 Years

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | TAA | Lifetime WarrantyThe SFPSXMM is a TAA compliant MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 10 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 850 nm• Maximum Data Transfer Rate: 1.25 Gbps• Type: Multi Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 550 m (1804 ft)• MTBF: 78,286 hours• Power Consumption: Less than 1 Watt• DDM: NoThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

Essential Info:


1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | TAA | Lifetime WarrantyThe SFPSXMM is a TAA compliant MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 10 GbE connectivity over fiber cabling.Technical Specifications:• Wavelength: 850 nm• Maximum Data Transfer Rate: 1.25 Gbps• Type: Multi Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 550 m (1804 ft)• MTBF: 78,286 hours• Power Consumption: Less than 1 Watt• DDM: NoThis SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage

Specs


Performance
SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Multi-mode fiber (MMF) supported✓
Fiber optic connectorLC
SFP transceiver standardSX
Maximum transfer distance550 m
Wavelength850 nm
Networking standardsIEEE 802.3z
Fiber ethernet cabling technology1000BASE
Duplex systemFull
Digital Diagnostics Monitoring (DDM)✘
Features
Product colourSilver
Hot-swap✓
Mean time between failures (MTBF)78286 h
Brand compatibilityMSA Compliant
CertificationCE, FCC, UL, TAA, REACH
Power
Power consumption (typical)1 W
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width13 mm
Depth55 mm
Height9 mm
Weight18 g
Packaging data
Number of products included1 pc(s)
Package width25 mm
Package depth115 mm
Package height65 mm
Package weight40 g
Technical details
Sustainability certificatesRoHS
Logistics data
Master (outer) case width220 mm
Master (outer) case length560 mm
Harmonized System (HS) code85369010
Master (outer) case height210 mm
Products per master (outer) case100 pc(s)
Other features
Dimensions (WxDxH)13 x 55 x 9 mm

Additional information

EAN

65030834940

Brand

StarTech.com

Colour

Product type

Network Transceiver Modules
