Gigabyte A620M GAMING X motherboard AMD A620 Socket AM5 micro ATX

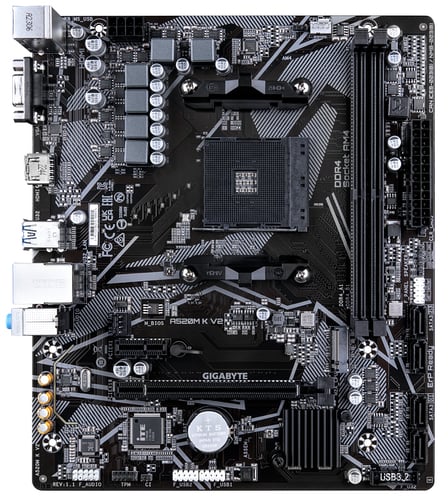

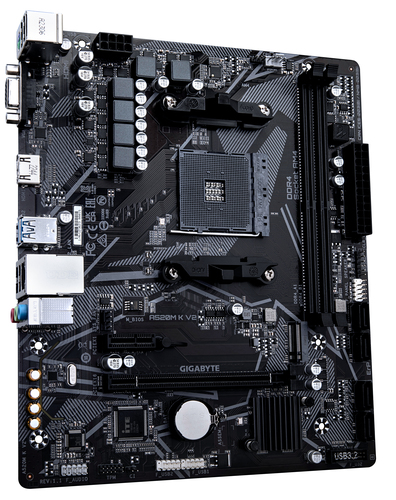

£112.31 incl. VATGigabyte A520M K V2 motherboard AMD A520 Socket AM4 micro ATX
£59.02 incl. VAT
Out of Stock
MPN: A520M K V2
Warranty: 3 years
4719331852771
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
Specs
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen |
| Supported processor sockets | Socket AM4 | Memory |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC | ✓ |
| Non-ECC | ✓ |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3400,3466,3600,3733,3866,4000,4133,4266,4400,4600,4800,5100 MHz |
| Supported memory clock speed (max) | 5100 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | ✓ | Storage controllers |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| RAID support | ✓ |
| RAID levels | 0, 1, 10 | Graphics |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | ✓ | Internal I/O |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | ✓ |
| Front panel connector | ✓ |
| ATX Power connector (24-pin) | ✓ |
| CPU fan connector | ✓ |
| Chassis intrusion connector | ✓ |
| EPS power connector (8-pin) | ✓ |
| TPM connector | ✓ |
| 12V power connector | ✓ | Rear panel I/O ports |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 3 |
| Microphone in | ✓ |
| USB connector type | USB Type-A |
| Network | |
|---|---|
| Ethernet LAN | ✓ |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Features |
| Motherboard chipset | AMD A520 |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 | Expansion slots |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 | BIOS |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | ✓ |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 | Logistics data |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) | Battery |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 | Packaging data |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 675 g | Weight & dimensions |
| Width | 233 mm |
| Depth | 198 mm |
| Height | 35 mm | Packaging content |
| Cables included | SATA |
| Batteries included | ✓ |
| Bundled software | Norton Internet Security | Technical details |
| Warranty period | 3 year(s) |
Additional information
| Brand | Gigabyte |
|---|---|
| Processor manufacturer | |
| Product type | Motherboards |
| EAN | 4719331852771 |
Reviews
There are no reviews yet.
