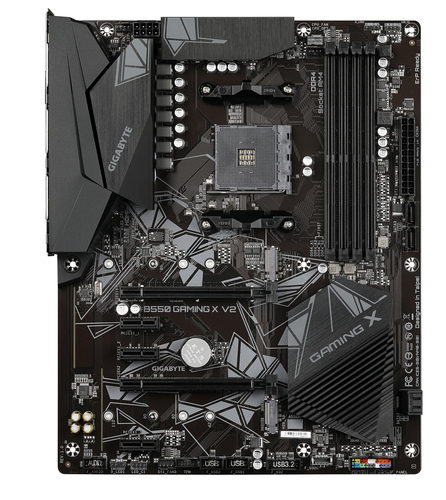

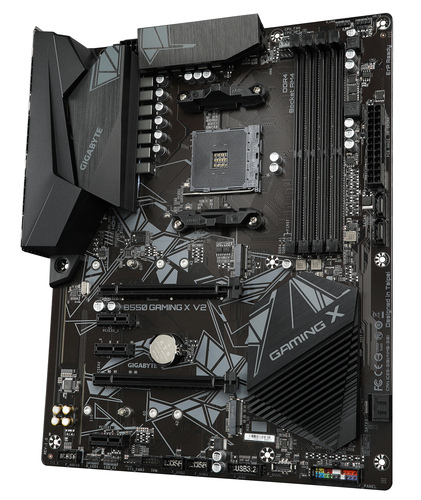

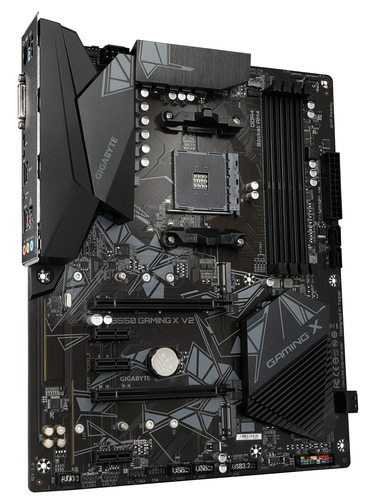

GIGABYTE B550 Gaming X V2 AMD B550 Socket AM4 ATX
£110.94 incl. VAT
80 in stock
Free delivery by Tuesday 29 September
MPN: B550 GAMING X V2
4719331810702
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 2000 Series |
| Maximum internal memory supported by processor | 128 GB | Memory | Value |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4266,4400,4733 MHz |
| Supported memory clock speed (max) | 4733 MHz |
| Maximum internal memory | 128 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 32GB | Storage controllers | Value |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | ✓ |
| RAID levels | 0, 1, 10 | Graphics | Value |
| Maximum graphics card memory | 16 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | |
| Graphics card family | AMD |
| HDCP | ✓ |
| DirectX version | 12.0 | Internal I/O | Value |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| S/PDIF out connector | |
| Front panel audio connector | ✓ |
| Front panel connector | ✓ |
| ATX Power connector (24-pin) | ✓ |
| Power fan connector | ✓ |
| CPU fan connector | ✓ |
| TPM connector | ✓ |
| 12V power connector | ✓ |
| RGB LED pin header | ✓ | Rear panel I/O ports | Value |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | ✓ |
| USB connector type | USB Type-A |
| Network | Value |
|---|---|
| Ethernet LAN | ✓ |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Features | Value |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | CPU, Fan, LED, Power supply, Temperature, Voltage |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Cooling type | Active |
| Power source type | ATX |
| Supported processor sockets (cooler) | Socket AM4 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 | Expansion slots | Value |
| PCI Express x1 slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 | BIOS | Value |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | ✓ |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 | Logistics data | Value |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Harmonized System (HS) code | 84733020 | Battery | Value |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 | Packaging data | Value |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.71 kg | Weight & dimensions | Value |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm | Packaging content | Value |
| Batteries included | ✓ | Other features | Value |
| DVI port | ✓ |
| Supported DIMM module capacities | 32GB |
| Weight | 1.12 kg | Technical details | Value |
| Warranty period | 3 year(s) |
Additional information
| Brand | Gigabyte |
|---|---|
| Processor manufacturer | |
| Product type | Motherboards |
| EAN | 4719331810702 |
