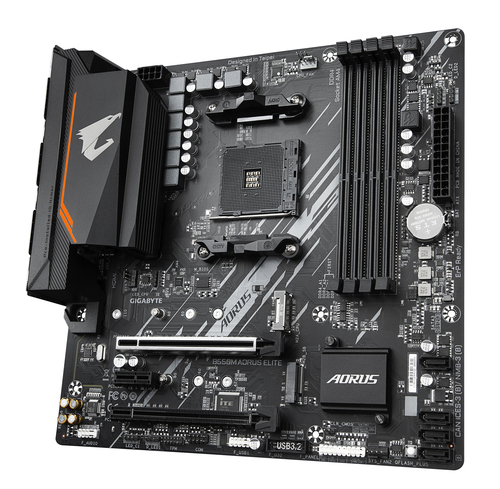

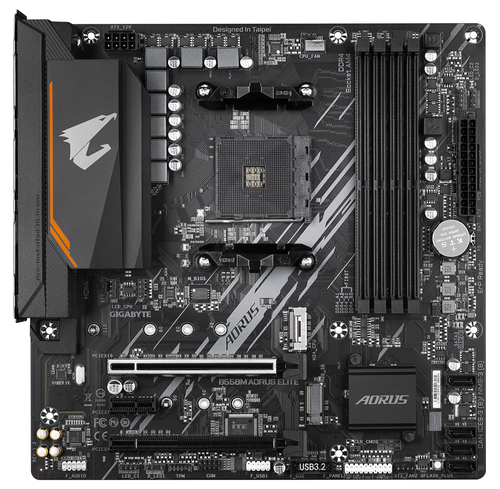

GIGABYTE B550M AORUS ELITE motherboard AMD B550 Socket AM4 micro ATX

GIGABYTE B550M AORUS ELITE motherboard AMD B550 Socket AM4 micro ATX - Image 2

GIGABYTE B550M AORUS ELITE motherboard AMD B550 Socket AM4 micro ATX - Image 3

GIGABYTE B550M AORUS ELITE motherboard AMD B550 Socket AM4 micro ATX

Name: GIGABYTE B550M AORUS ELITE motherboard AMD B550 Socket AM4 micro ATX
SKU: DKW467973AMZ
Price: 95.80 GBP
Availability: BackOrder

£95.80 incl. VAT

Available on back-order

Free delivery by Tuesday 29 September

MPN: B550M AORUS ELITE

Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

RGB Fusion 2.0 Software

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Q-Flash Plus

With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

Processor	Value
Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Maximum number of SMP processors	1
Supported processor sockets	Socket AM4
Maximum internal memory supported by processor	128 GB
Memory	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	ECC & Non-ECC
Supported memory clock speeds	2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Supported memory clock speed (max)	4733 MHz
Maximum internal memory	128 GB
Supported memory module capacities	1GB, 2GB, 4GB, 16GB, 32GB
Unbuffered memory	✓
Storage controllers	Value
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of HDDs supported	4
Number of storage drives supported	6
RAID levels	0, 1, 10
Graphics	Value
Parallel processing technology support	Not supported
Maximum resolution	4096 x 2160 pixels
HDCP	✓
DirectX version	12.0
Discrete graphics support	✓
Number of displays supported	2
Internal I/O	Value
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Total number of SATA connectors	4
Front panel audio connector	✓
Front panel connector	✓
ATX Power connector (24-pin)	✓
Power fan connector	✓
CPU fan connector	✓
Number of chassis fan connectors	2
TPM connector	✓
Serial port headers	1
12V power connector	✓
RGB LED pin header	✓

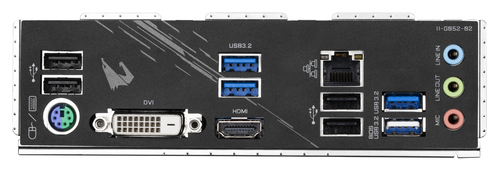

Rear panel I/O ports	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
PS/2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
DVI-D ports quantity	1
Headphone outputs	1
Microphone in	✓
Digital audio optical out	1
Serial ports quantity	1
USB connector type	USB Type-A

Network	Value
Ethernet LAN	✓
Ethernet interface type	Gigabit Ethernet
Wi-Fi	✘
Features	Value
Motherboard chipset	AMD B550
Audio chip	Realtek ALC887
Audio output channels	7.1 channels
Product colour	Brown
PC health monitoring	CPU, Fan, LED, Power supply, Temperature, Voltage
Component for	PC
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Cooling type	Active
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Expansion slots	Value
PCI Express x1 slots	1
PCI Express x1 (Gen 3.x) slots	1
PCI Express x4 slots	1
PCI Express x16 slots	1
Number of M.2 (M) slots	2
BIOS	Value
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	5.0
Clear CMOS jumper	✓
Clear CMOS button	✓
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Logistics data	Value
Country of origin	China
Products per shipping (inner) case	1 pc(s)
Harmonized System (HS) code	84733020
Battery	Value
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Packaging data	Value
Package width	265 mm
Package depth	265 mm
Package height	65 mm
Package weight	1.27 kg
Weight & dimensions	Value
Width	244 mm
Depth	244 mm
Height	35 mm
Packaging content	Value
Cables included	SATA
Batteries included	✓
Drivers included	✓
Bundled software	Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Technical details	Value
Warranty period	3 year(s)
