Gigabyte B760M H DDR4 motherboard Intel B760 Express LGA 1700 micro ATX
£86.66 incl. VAT
Gigabyte A620M H motherboard AMD A620 Socket AM5 micro ATX

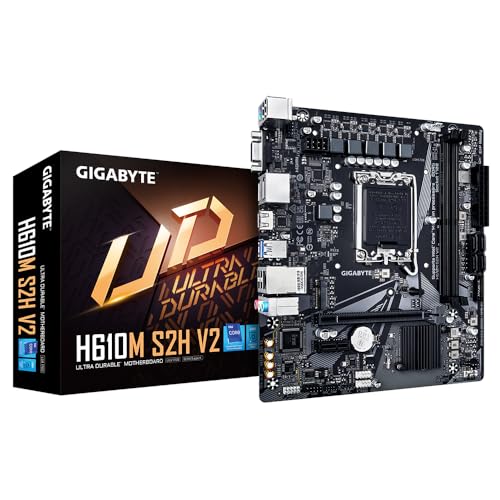

£84.68 incl. VATGigabyte H610M S2H V2 motherboard Intel H610 Express LGA 1700 micro ATX
£64.89 incl. VAT
Out of Stock
MPN: H610M S2H V2
Warranty: 3 years
4719331859817
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Specs
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 96 GB | Memory |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC | ✓ |
| Non-ECC | ✓ |
| Supported memory clock speeds | 5600, 5200, 4800, 4400 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Maximum internal memory | 96 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB |
| Unbuffered memory | ✓ | Storage controllers |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 1 | Graphics |
| On-board graphics card | ✓ |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | ✓ |
| On-board graphics card model | Intel® HD Graphics | Internal I/O |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | ✓ |
| Front panel connector | ✓ |
| ATX Power connector (24-pin) | ✓ |
| CPU fan connector | ✓ |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | ✓ |
| Number of COM connectors | 1 |
| TPM connector | ✓ |
| Serial port headers | 1 |
| 12V power connector | ✓ |
| RGB LED pin header | ✓ | Rear panel I/O ports |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | ✓ |
| Network | |
|---|---|
| Ethernet LAN | ✓ |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Features |
| Motherboard chipset | Intel H610 Express |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, LED, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Cooling type | Active |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 | Expansion slots |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 | BIOS |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | ✓ |
| Clear CMOS button | ✓ |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 | Logistics data |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) | Battery |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 | Packaging data |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 690 g | Weight & dimensions |
| Width | 230 mm |
| Depth | 215 mm |
| Height | 35 mm | Packaging content |
| Cables included | SATA |
| Batteries included | ✓ |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software | Other features |
| Supported DIMM module capacities | 8GB, 16GB | Technical details |
| Warranty period | 3 year(s) |
Additional information
| Processor manufacturer | |
|---|---|
| Colour | |
| Product type | Motherboards |
| Brand | Gigabyte |
| EAN | 4719331859817 |
Reviews
There are no reviews yet.
