StarTech.com HSB3SATSASBA disk array Black

£89.50 incl. VAT

8 in stock

Free delivery by Wednesday 30 September
MPN: HSB3SATSASBA
Warranty: 2 Years

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5″ drives from the front of your computer, by turning two 5.25″ bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives — an ideal accommodation for enterprise system applications.

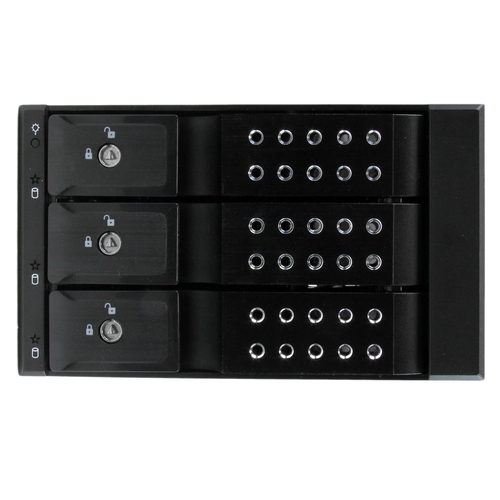

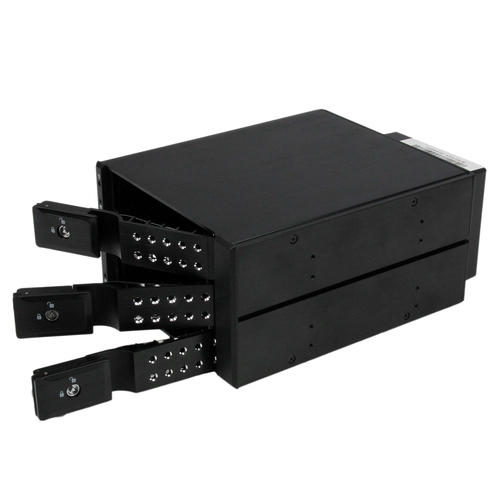

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
– Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps
– Flexible drive options with support for both SATA and SAS drive interfaces
– Helps maintain ideal drive operating temperatures by providing excellent heat dissipation, vented aluminum housing and a built-in fan

Essential Info:


RACK MOVIL BACKPLANE 3 BAHIAS

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).

For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps
- Flexible drive options with support for both SATA and SAS drive interfaces
- Helps maintain ideal drive operating temperatures by providing excellent heat dissipation, vented aluminum housing and a built-in fan

Specs


Storage
Storage drives installed✘
Installed storage drive type✘
Supported storage drive typesHDD
Number of storage drives supported3
Maximum supported storage capacity12 TB
Storage drive interfaceSerial ATA, Serial ATA II, Serial ATA III
Storage drive size3.5"
Data transfer rate6 Gbit/s
Hot-swap drive bays✓
Ports & interfaces
Host ports3
SATA host port✓
Number of SATA power connectors2
SATA power connector typeSATA 15-pin
Design
Internal✘
Product colourBlack
LED indicatorsActivity, Power
Number of fans1 fan(s)
Performance
Backplanes support✓
Weight & dimensions
Width145 mm
Depth194.1 mm
Height110 mm
Weight1.2 kg
Package width179 mm
Package depth253 mm
Package height123 mm
Package weight1.2 kg
Technical details
Sustainability certificatesRoHS
Compliance certificatesRoHS
Logistics data
Products per master (outer) case8 pc(s)
Master (outer) case length523 mm
Master (outer) case width386 mm
Master (outer) case height290 mm
Harmonized System (HS) code84717020
Packaging content
Cables includedSATA
Operational conditions
Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)5 - 85%
Storage temperature (T-T)-20 - 60 °C
