StarTech.com SV231DHU34K6 KVM switch Black
£362.61 incl. VATStarTech.com SV431DPUA KVM switch Black
£285.59 incl. VAT
6 in stock
Free delivery by Wednesday 30 September
MPN: SV431DPUA
Warranty: 3 Year Warranty
0065030837545
Share keyboard, mouse, and DisplayPort display between four HD multimedia systems
The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560×1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840×2400 is supported at reduced refresh rates.

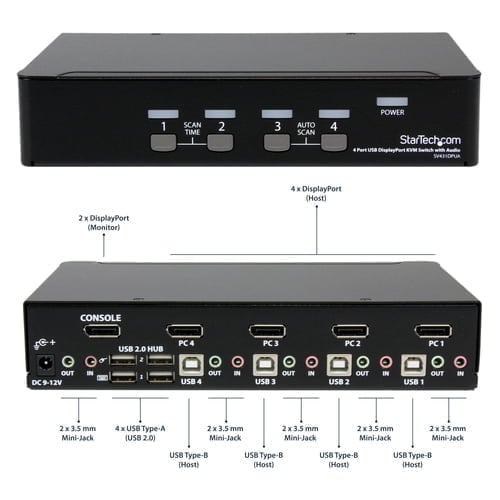

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
– USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
– Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
– Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
Share keyboard, mouse, and DisplayPort display between four HD multimedia systems
The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
Specs
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | DisplayPort, 3.5mm headphone, 3.5mm mic, USB A |
| Console USB ports quantity | 4 |
| USB hub | ✓ |
| Audio connections | ✓ |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
| DC-in jack | ✓ | Performance |
| Maximum resolution | 3840 x 2400 pixels |
| Maximum digital resolution | 2560 x 1600 pixels |
| DDC2B support | ✓ |
| Hot-Plug support | ✓ |
| Plug and Play | ✓ |
| Daisy chain | |
| Number of users | 1 user(s) |
| Audio channels | 7.1 | Design |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | ✓ |
| Push button | ✓ |
| Hot keys | ✓ |
| Mean time between failures (MTBF) | 136000 h |
| Certification | CE, FCC, UL, TAA, REACH | Display |
| Built-in display | |
| On Screen Display (OSD) |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| External power adapter | ✓ |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US | Sustainability |
| Sustainability certificates | RoHS | Operational conditions |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% | Weight & dimensions |
| Width | 221 mm |
| Depth | 130.6 mm |
| Height | 44 mm |
| Weight | 1 kg | Packaging data |
| Package width | 214 mm |
| Package depth | 411 mm |
| Package height | 87 mm |
| Package weight | 1.6 kg | Packaging content |
| Manual | ✓ |
| AC adapter included | ✓ |
| Rubber feet | ✓ | Logistics data |
| Harmonized System (HS) code | 85176200 | Other features |
| Audio support | ✓ |
| IP control |
Additional information
| EAN | 0065030837545 |
|---|---|
| Brand | StarTech.com |
| Max Resolution | |
| Product type | KVM Switches |
