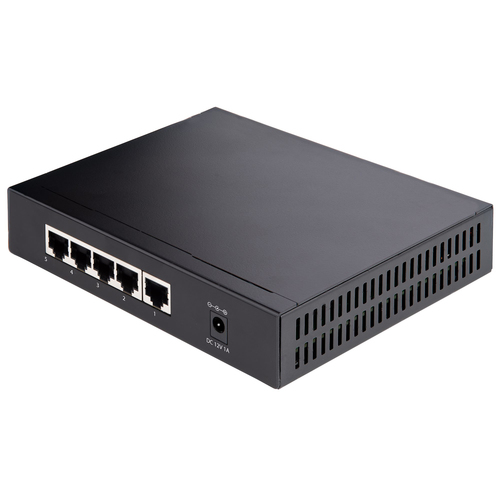

StarTech.com DS52000 network switch 2.5G Ethernet (100/1000/2500) Black

£67.71 incl. VAT

3 in stock

Free delivery by Wednesday 30 September
MPN: DS52000
Warranty: 2 Years

2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slot

The unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.

Enhance your network

This network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.

Secure and versatile

The 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1×4.7×1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.

The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slot

The unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.

Enhance your network

This network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.

Secure and versatile

The 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.

The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage
Management featuresValue
Switch typeUnmanaged
Quality of Service (QoS) support✓
Ports & interfacesValue
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity5
Power connectorDC-in jack
NetworkValue
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support✘
Copper ethernet cabling technology10BASE-T, 1000BASE-TX, 2500BASE-T
Cable types supportedCat5e, Cat6, Cat6a
Full duplex✓
Auto MDI/MDI-X✓
Data transmissionValue
Switching capacity2.5 Gbit/s
Store-and-forward✓
Jumbo frames support✓
Jumbo frames9000
DesignValue
Rack mounting✘
Product colourBlack
Housing materialSteel
LED indicators✓
Wall mountable✓
PerformanceValue
Maximum cable length100 m
Technical detailsValue
Compliance certificatesCE, RoHS
PowerValue
Power sourceAC/DC
Power supply included✓
AC input voltage100 - 240 V
Input current0.5 A
Output voltage12 V
Output current1 A
Power plug typeType M
Power over Ethernet (PoE)Value
Power over Ethernet (PoE)✘
Operational conditionsValue
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 90%
Weight & dimensionsValue
Width120 mm
Depth145 mm
Height30 mm
Weight600 g
Packaging dataValue
Quick start guide✓
Wall mounting kit✓
AC adapter included✓
Package width285 mm
Package depth135 mm
Package height70 mm
Package weight700 g
Logistics dataValue
Master (outer) case width305 mm
Master (outer) case length370 mm
Master (outer) case height290 mm
Harmonized System (HS) code85176990
Products per master (outer) case10 pc(s)
