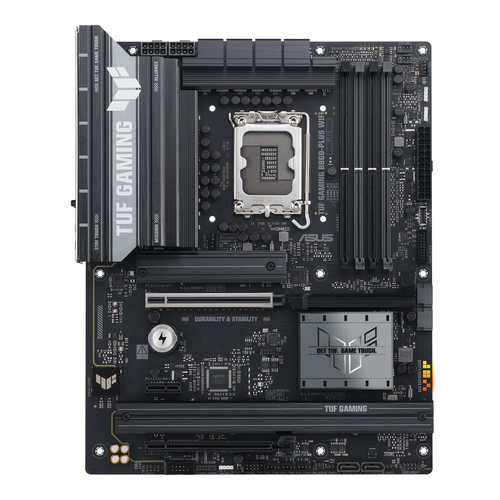

ASUS TUF GAMING B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX
£207.65 incl. VAT

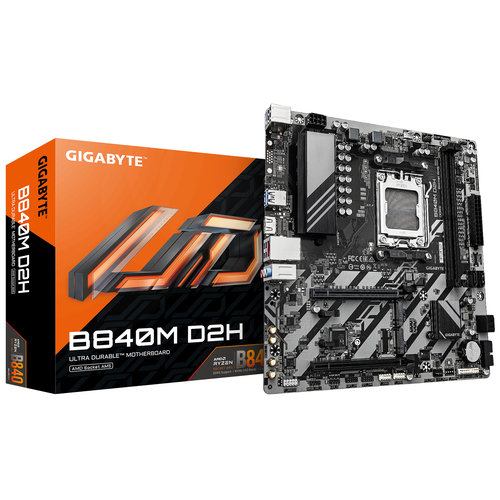

GIGABYTE B840M D2H motherboard AMD B840 Socket AM5 micro ATX

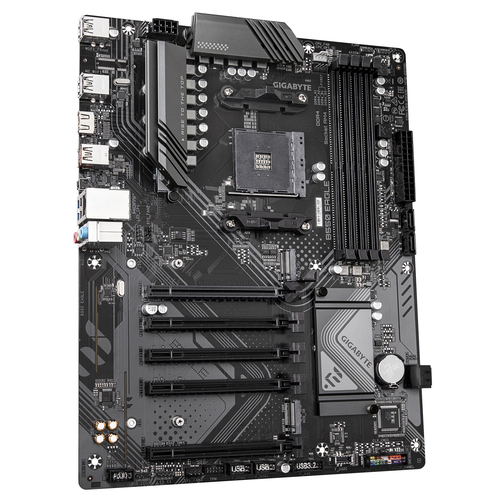

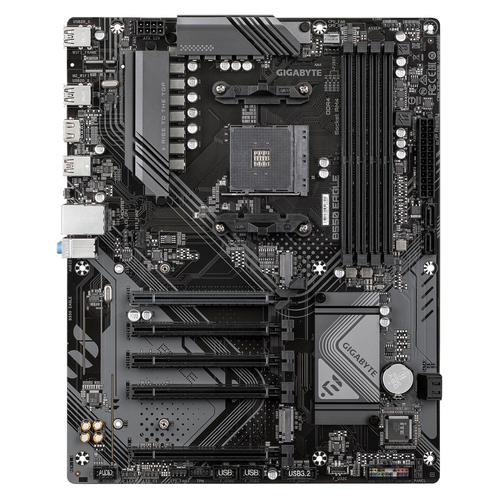

£101.00 incl. VATGIGABYTE B550 EAGLE motherboard AMD B550 Socket AM4 ATX
£100.91 incl. VAT
75 in stock
Free delivery by Tuesday 29 September
MPN: B550 EAGLE
4719331868208
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Processor | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 | Memory | Value |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 3200,2933,2667,2400,2133 MHz |
| Supported memory clock speed (max) | 3200 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | ✓ |
| Maximum internal memory per slot | 32 GB | Storage controllers | Value |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | ✓ |
| RAID levels | 0, 1, 10 | Graphics | Value |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | ✓ |
| DirectX version | 12.0 | Internal I/O | Value |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | ✓ |
| Front panel connector | ✓ |
| ATX Power connector (24-pin) | ✓ |
| CPU fan connector | ✓ |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 3 |
| EPS power connector (8-pin) | ✓ |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | ✓ |
| Number of water pump connectors | 1 |
| RGB LED pin header | ✓ |

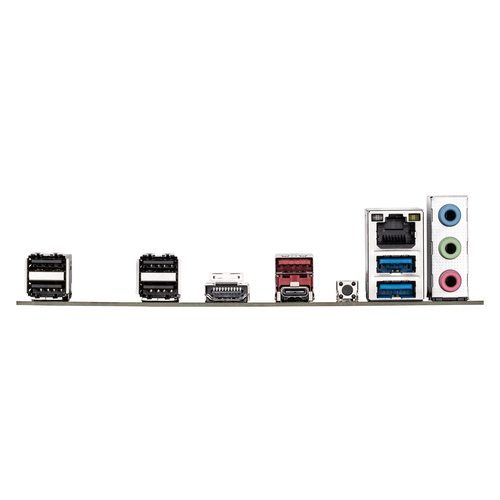

| Number of RGB LED pin headers | 5 | Rear panel I/O ports | Value |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | ✓ |
| Microphone in | ✓ |
| Network | Value |
|---|---|
| Ethernet LAN | ✓ |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | Features | Value |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Dark brown |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 | Expansion slots | Value |
| PCI Express x1 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 3.0 | BIOS | Value |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | ✓ |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 | Logistics data | Value |
| Products per shipping (inner) case | 1 pc(s) | Battery | Value |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 | Packaging data | Value |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.48 kg | Weight & dimensions | Value |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm | Packaging content | Value |
| Batteries included | ✓ |
| Screws included | ✓ |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software | Other features | Value |
| Weight | 1.25 kg | Technical details | Value |
| Warranty period | 3 year(s) |
