StarTech.com C2-H46-UC2-PD-KVM KVM switch Black

£177.39 incl. VAT

1 in stock

Free delivery by Wednesday 30 September
MPN: C2-H46-UC2-PD-KVM
Warranty: 2 Years

Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selectionThis USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz HDMI monitor, keyboard, and mouse, while simultaneously charging each laptop.100W Power Delivery Pass-throughDual-100W Power Delivery 3.0 pass-through ports (10W reserved) enable the KVM Switch to charge each laptop at up to 90W, using its own dedicated USB-C power adapter. The dual PD passthrough ports allow for charging each laptop, even when they are not connected to the selected port.Universal CompatibilityThe 2-Port KVM Switch works with any operating system, including Windows, macOS, Linux, and ChromeOS. It is compatible with all hardware platforms, such as Intel, AMD, and Apple M1 and M2 devices (e.g., MacBook Pro). Additionally, it works with DP Alt Mode-enabled USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.Ready for Quick DeploymentThe KVM Switch is bus-powered and includes two 3ft/1m USB-C host cables, allowing for rapid deployment. The small form factor is sturdy and features attached rubber feet, keeping the KVM securely in place during use. The streamlined port layout ensures easy access to the mouse, keyboard, and host connections, while the PD Passthrough and HDMI output are conveniently out of the way – located on the other side of the unit.The StarTech.com Advantage

Essential Info:


Power/charge and control two USB Type-C laptops over a single 4K 60Hz HDMI monitor, with pushbutton host selectionThis USB Type-C KVM Switch enables users to switch between two USB-C laptops, sharing a 4K 60Hz HDMI monitor, keyboard, and mouse, while simultaneously charging each laptop.100W Power Delivery Pass-throughDual-100W Power Delivery 3.0 pass-through ports (10W reserved) enable the KVM Switch to charge each laptop at up to 90W, using its own dedicated USB-C power adapter. The dual PD passthrough ports allow for charging each laptop, even when they are not connected to the selected port.Universal CompatibilityThe 2-Port KVM Switch works with any operating system, including Windows, macOS, Linux, and ChromeOS. It is compatible with all hardware platforms, such as Intel, AMD, and Apple M1 and M2 devices (e.g., MacBook Pro). Additionally, it works with DP Alt Mode-enabled USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.Ready for Quick DeploymentThe KVM Switch is bus-powered and includes two 3ft/1m USB-C host cables, allowing for rapid deployment. The small form factor is sturdy and features attached rubber feet, keeping the KVM securely in place during use. The streamlined port layout ensures easy access to the mouse, keyboard, and host connections, while the PD Passthrough and HDMI output are conveniently out of the way - located on the other side of the unit.The StarTech.com Advantage

Specs


Ports & interfaces
Number of computers controlled2
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
Console portsHDMI, USB A, USB C
Console USB ports quantity4
Console HDMI ports quantity1
Performance
HD type4K Ultra HD
Maximum resolution4096 x 2160 pixels
Video bandwidth75 Hz
Data transfer rate (max)0.48 Gbit/s
Plug and Play✓
ChipsetVLI - VL103R, VLI - VL171, Parade - PS186, VLI - VL817
Audio channels7.1
Design
Rack mounting✘
Product colourBlack
Housing materialAcrylonitrile butadiene styrene (ABS)
Cable length1 m
LED indicatorsPower
Push button✓
Hot keys✘
Mean time between failures (MTBF)50000 h
Display
Built-in display✘
Power
Power consumption (typical)10 W
USB Power Delivery✓
USB Power Delivery up to100 W
Sustainability
Sustainability compliance✓
Sustainability certificatesCE, RoHS
Operational conditions
Operating temperature (T-T)5 - 55 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 80%
Weight & dimensions
Width70 mm
Depth140 mm
Height15 mm
Weight200 g
Packaging data
Package width120 mm
Package depth172 mm
Package height85 mm
Package weight440 g
Packaging content

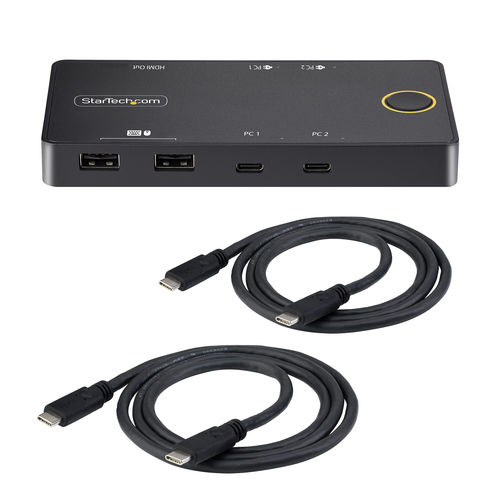

Cables includedUSB Type-C
Quick installation guide✓
Logistics data
Master (outer) case width410 mm
Master (outer) case length470 mm
Master (outer) case height310 mm
Products per master (outer) case20 pc(s)
Other features
IP control✘

Additional information

Max Resolution

Monitor type

Product type

KVM Switches

Brand

StarTech.com

EAN

0065030897648
