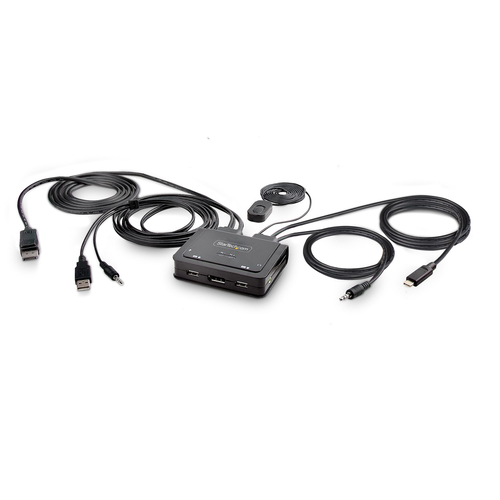

StarTech.com C2-H46-UC2-PD-KVM KVM switch Black
£177.39 incl. VAT

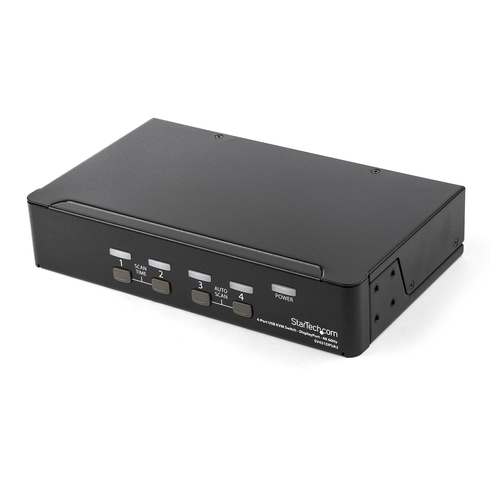

StarTech.com SV431DPUA2 KVM switch Rack mounting Black
£387.47 incl. VATStarTech.com SV431DUSBU KVM switch Rack mounting Black
£180.58 incl. VAT
5 in stock
Free delivery by Tuesday 29 September
MPN: SV431DUSBU
Warranty: 3 Year Warranty
0065030837231
Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor
The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
– On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security
– Absolutely no software or drivers required providing a completely OS independent KVM solution
Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor
The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security
- Absolutely no software or drivers required providing a completely OS independent KVM solution
Specs
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | |
| Mouse port type | |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 5 |
| Console ports | USB A, VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Audio connections | |
| DC-in jack | ✓ | Performance |
| Maximum resolution | 1920 x 1440 pixels |
| Maximum analog resolution | 1920 x 1440 pixels |
| Plug and Play | ✓ |
| Daisy chain | ✓ | Design |
| Rack mounting | ✓ |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power |
| Hot keys | ✓ |
| Mean time between failures (MTBF) | 143000 h |
| Certification | CE, FCC, TAA, REACH | Display |
| Built-in display | |
| On Screen Display (OSD) | ✓ | Power |
| AC input voltage | 110 - 240 V |
| Input current | 0.2 A |
| Output voltage | 9 V |
| Output current | 0.6 A |
| Power consumption (typical) | 5.4 W |
| External power adapter | ✓ |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS | Operational conditions |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% | Weight & dimensions |
| Width | 220 mm |
| Depth | 130 mm |
| Height | 43 mm |
| Weight | 957 g | Packaging data |
| Package width | 411 mm |
| Package depth | 215 mm |
| Package height | 89 mm |
| Package weight | 1.6 kg | Packaging content |
| Manual | ✓ |
| AC adapter included | ✓ |
| Rubber feet | ✓ | Logistics data |
| Harmonized System (HS) code | 85176200 | Other features |
| Audio support | |
| IP control |
Additional information
| Max Resolution | |
|---|---|
| Product type | KVM Switches |
| Brand | StarTech.com |
| EAN | 0065030837231 |
