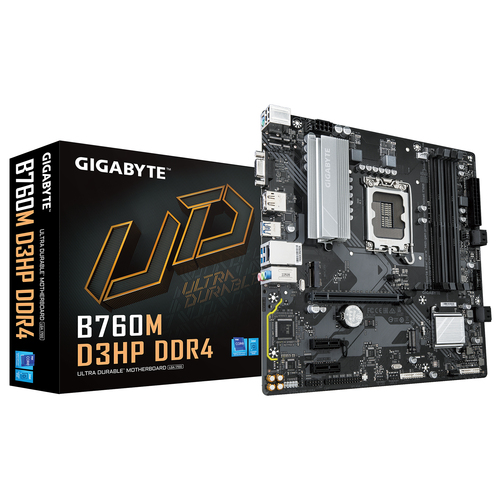

GIGABYTE B760M D3HP DDR4 motherboard Intel B760 Express LGA 1700 micro ATX
£92.09 incl. VATASUS ROG STRIX Z890-F GAMING WIFI Intel Z890 LGA 1851 (Socket V1) ATX
£271.63 incl. VAT
89 in stock
Free delivery by Tuesday 29 September
MPN: 90MB1I40-M0EAY0
4711387755921

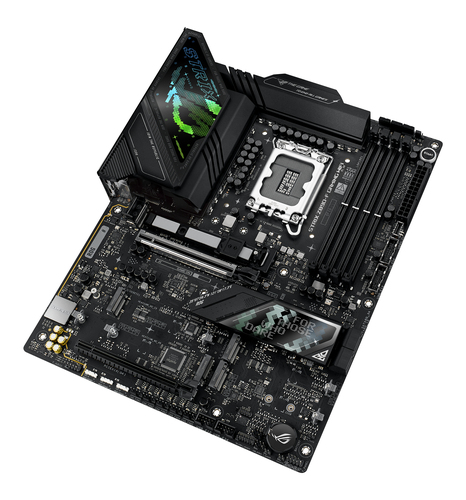

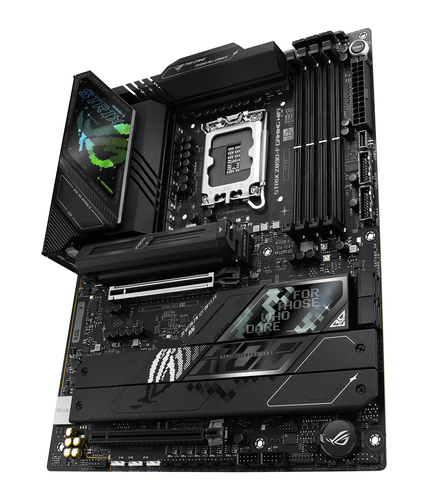

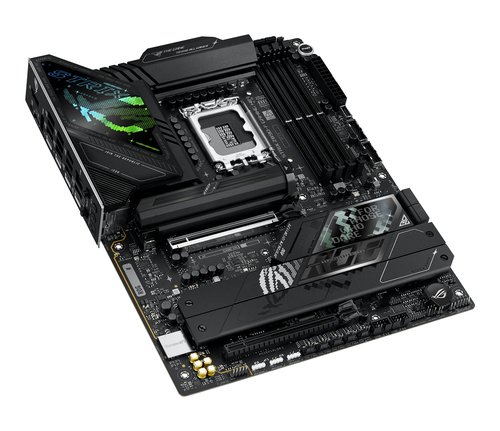

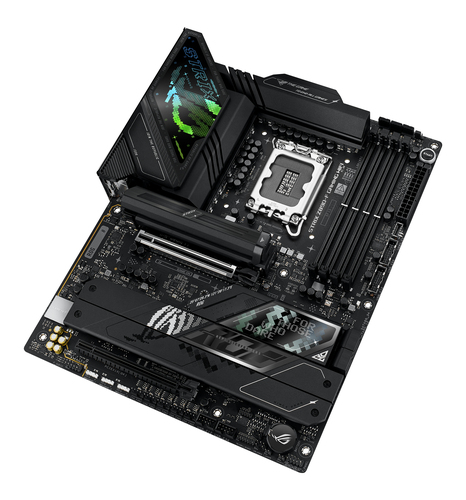

ROG STRIX Z890-F gaming wifi
With NPU boosting and cutting-edge AI solutions, the ROG STRIX Z890-F Gaming WiFi supports advanced AI-driven PC applications. Equipped with Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, it delivers blazing-fast data transfers, unparalleled connectivity and a customizable aesthetic that can be either subtle or bold.
ROG STRIX Z890-F gaming wifi
| Processor | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) | Memory | Value |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 8600 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | ✓ | Storage controllers | Value |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 9 |
| RAID support | ✓ |
| RAID levels | 0, 1, 5 | Graphics | Value |
| Parallel processing technology support | Not supported |
| On-board graphics card | Internal I/O | Value |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | ✓ |
| ATX Power connector (24-pin) | ✓ |
| CPU fan connector | ✓ |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | ✓ |
| EPS power connector (8-pin) | ✓ |
| Thunderbolt headers | 1 |

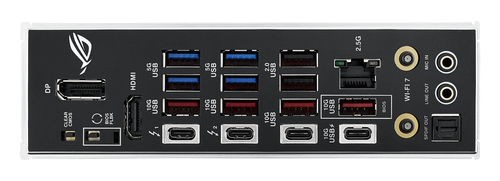

| 12V power connector | ✓ | Rear panel I/O ports | Value |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | ✓ |
| S/PDIF out port | ✓ |
| Thunderbolt ports quantity | 2 |
| Network | Value |
|---|---|
| Ethernet LAN | ✓ |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | ✓ |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | ✓ |
| Bluetooth version | 5.4 | Features | Value |
| Motherboard chipset | Intel Z890 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11 | Expansion slots | Value |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 5 | BIOS | Value |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | ✓ | Packaging data | Value |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.98 kg | Weight & dimensions | Value |
| Width | 305 mm |
| Depth | 244 mm |
Reviews
There are no reviews yet.
