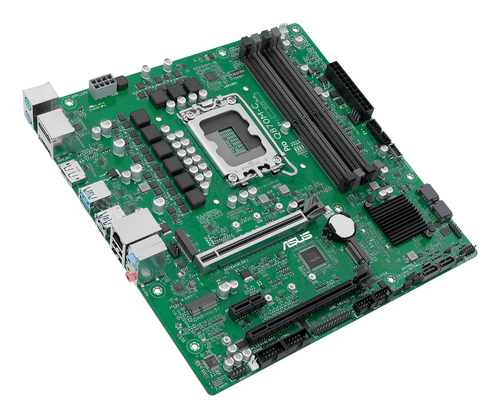

£325.44 incl. VATASUS PRO Q870M-C-CSM IntelĀ® Q870 LGA 1851 (Socket V1) micro ATX
£196.75 incl. VAT
2 in stock
Free delivery by Tuesday 29 September
MPN: 90MB1KEP-M0EAYC
4711387880586
Micro-ATX Q870 business motherboard with IntelĀ® vPro support and enhanced security, reliability and manageability
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world’s biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
Micro-ATX Q870 business motherboard with IntelĀ® vPro support and enhanced security, reliability and manageability
| Processor | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) | Memory | Value |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC Ńompatibility | Non-ECC |
| Supported memory clock speed (max) | 6400 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | ✓ | Storage controllers | Value |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | ✓ |
| RAID levels | 0, 1, 5, 10 | Graphics | Value |
| Parallel processing technology support | Not supported |
| On-board graphics card | Internal I/O | Value |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | ✓ |
| Front panel connector | ✓ |
| ATX Power connector (24-pin) | ✓ |
| CPU fan connector | ✓ |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | ✓ |
| Number of COM connectors | 2 |
| 12V power connector | ✓ | Rear panel I/O ports | Value |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | ✓ |
| USB connector type | USB Type-A, USB Type-C |
| Network | Value |
|---|---|
| Ethernet LAN | ✓ |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | IntelĀ® I219-LM |
| Wi-Fi | Features | Value |
| Motherboard chipset | IntelĀ® Q870 |
| Audio output channels | 7.1 channels |
| Product colour | Multicolour |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64, Windows 11 | Expansion slots | Value |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 | BIOS | Value |
| BIOS memory size | 256 Mbit | Packaging data | Value |
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 889.03 g | Weight & dimensions | Value |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 50 mm | Other features | Value |
| Weight | 550.6 g |
