ASUS ROG STRIX X870-F GAMING WIFI AMD X870 Socket AM5 ATX

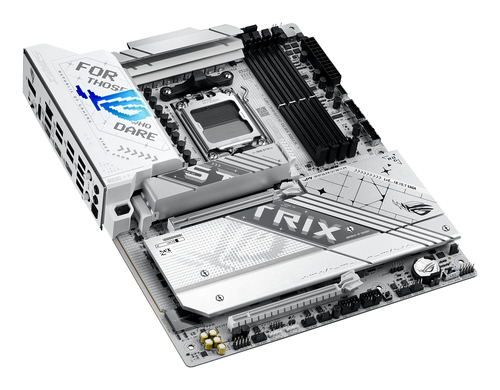

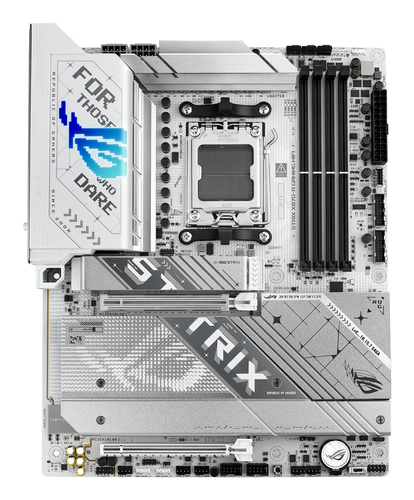

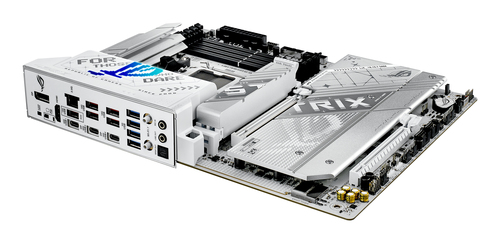

£369.69 incl. VATASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
£324.07 incl. VAT
16 in stock
Free delivery by Tuesday 29 September
MPN: 90MB1IF0-M0EAY0
4711387737859
ASUS AI INTELLIGENCE
ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
ai cOOLING II
Balance the thermals and acoustics of any build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
ASUS AI INTELLIGENCE
| Processor | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 | Memory | Value |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 192 GB |
| Unbuffered memory | ✓ | Storage controllers | Value |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 2 |
| Number of storage drives supported | 6 |
| RAID support | ✓ |
| RAID levels | 0, 1, 10, 5 | Graphics | Value |
| Parallel processing technology support | Not supported |
| On-board graphics card | Internal I/O | Value |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 2 |
| Front panel audio connector | ✓ |
| ATX Power connector (24-pin) | ✓ |
| CPU fan connector | ✓ |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | ✓ |
| 12V power connector | ✓ | Rear panel I/O ports | Value |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | ✓ |
| S/PDIF out port | ✓ |
| WiFi-AP antenna jack | 1 |
| Network | Value |
|---|---|
| Ethernet LAN | ✓ |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | ✓ |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | ✓ |
| Bluetooth version | 5.4 | Features | Value |
| Motherboard chipset | AMD X870 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Product colour | Aluminium |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 11 | Expansion slots | Value |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 | BIOS | Value |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | ✓ | Packaging data | Value |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.32 kg | Weight & dimensions | Value |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 50 mm | Packaging content | Value |
| Cables included | SATA | Other features | Value |
| Weight | 1.84 kg |
